Update IAM Role

Configure your lambda function to copy changed records from the Orders DynamoDB streams to the OrdersHistory table by doing the following.

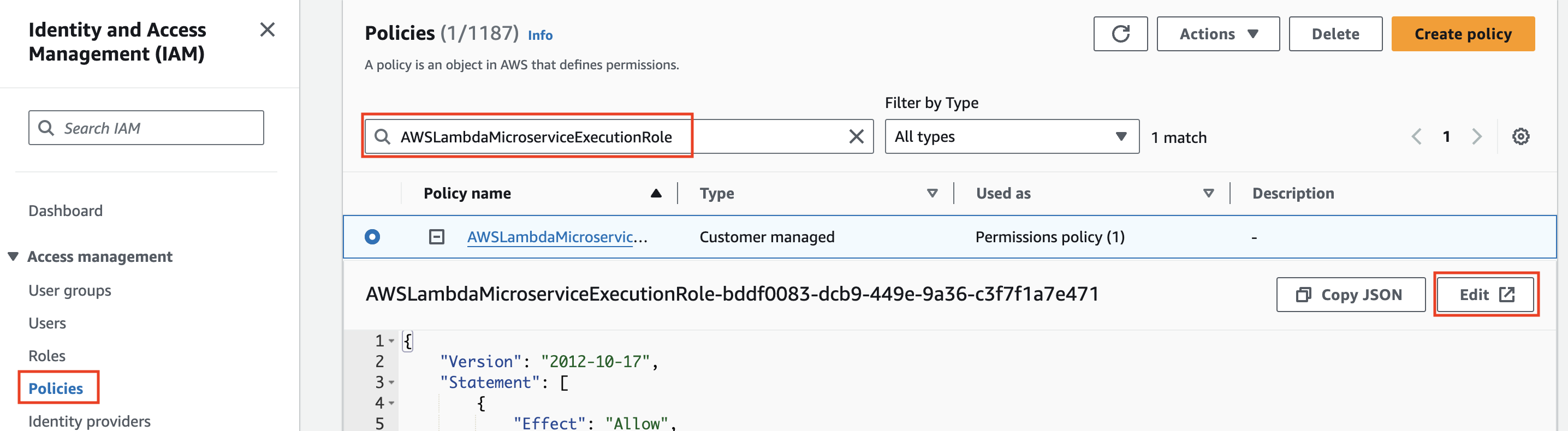

Go to the IAM dashboard on the AWS Management Console and inspect the IAM policy, i.e. AWSLambdaMicroserviceExecutionRole…, created when you created the create-order-history-ddbs lambda function.

AWS Lambda function console

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "dynamodb:DeleteItem",
                "dynamodb:GetItem",
                "dynamodb:PutItem",
                "dynamodb:Scan",
                "dynamodb:UpdateItem"
            ],
            "Resource": "arn:aws:dynamodb:{aws-region}:{aws-account-id}:table/*"
        }
    ]
}

Update the policy statement by editing and replacing the existing policy using the following IAM policy statement.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "dynamodb:DescribeStream",
                "dynamodb:GetRecords",
                "dynamodb:GetShardIterator",
                "dynamodb:ListStreams"
            ],
            "Resource": "arn:aws:dynamodb:{aws-region}:{aws-account-id}:table/Orders/stream/*"
        },
        {
            "Effect": "Allow",
            "Action": "dynamodb:PutItem",
            "Resource": "arn:aws:dynamodb:{aws-region}:{aws-account-id}:table/OrdersHistory"
        },
        {
            "Effect": "Allow",
            "Action": "sqs:SendMessage",
            "Resource": "arn:aws:sqs:{aws-region}:{aws-account-id}:orders-ddbs-dlq"
        }
    ]
}

The updated IAM policy gives the create-order-history-ddbs lambda function the permissions required to read events from the Orders DynamoDB stream, write new items to the OrdersHistory DynamoDB table and send messages to the orders-ddbs-dlq SQS queue.

Replace {aws-region} and {aws-account-id} in the policy statement above with the correct value for your AWS region and your AWS account ID.

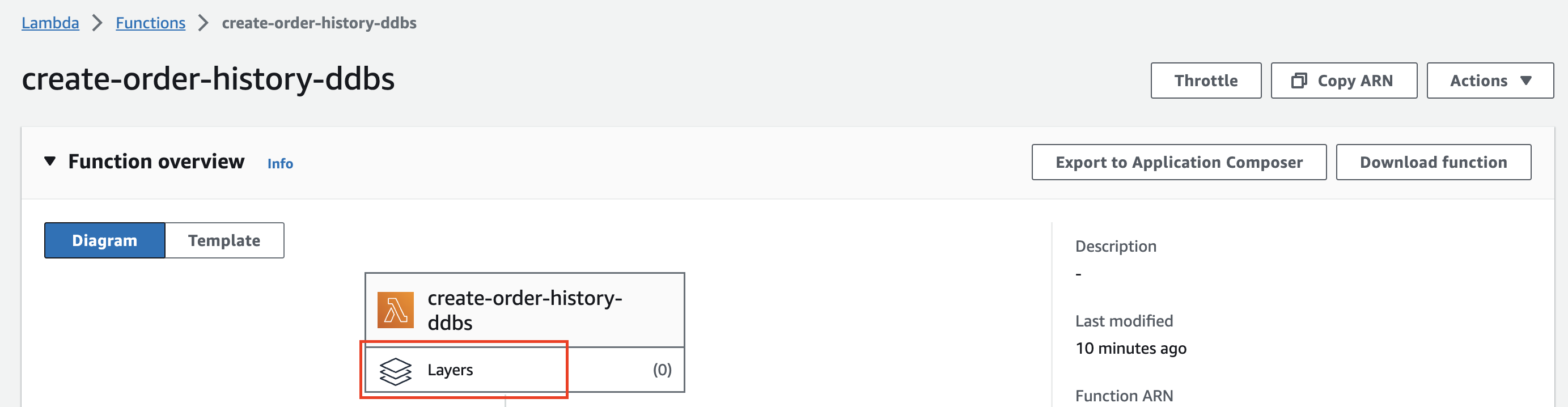

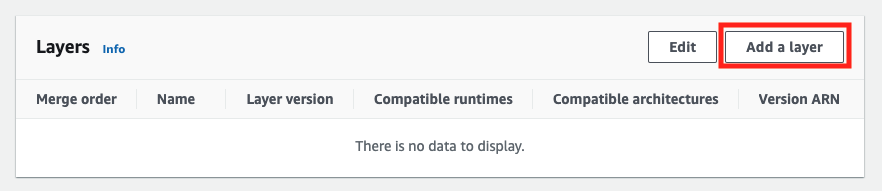

Go to the lambda function console editor. Select Layers then select Add a Layer.

AWS Lambda function console

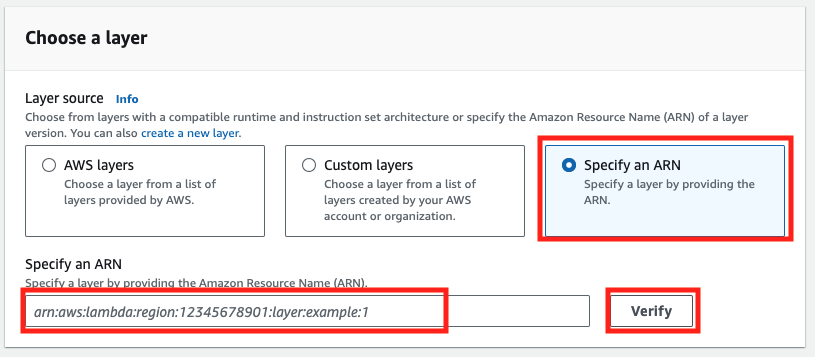

Select Specify an ARN, enter the Lambda Layer ARN below.

1
arn:aws:lambda:{aws-region}:017000801446:layer:AWSLambdaPowertoolsPythonV2:58

Click Verify then select Add.

AWS Lambda function console

Replace {aws-region} with ID for the AWS region that you are currently working on.

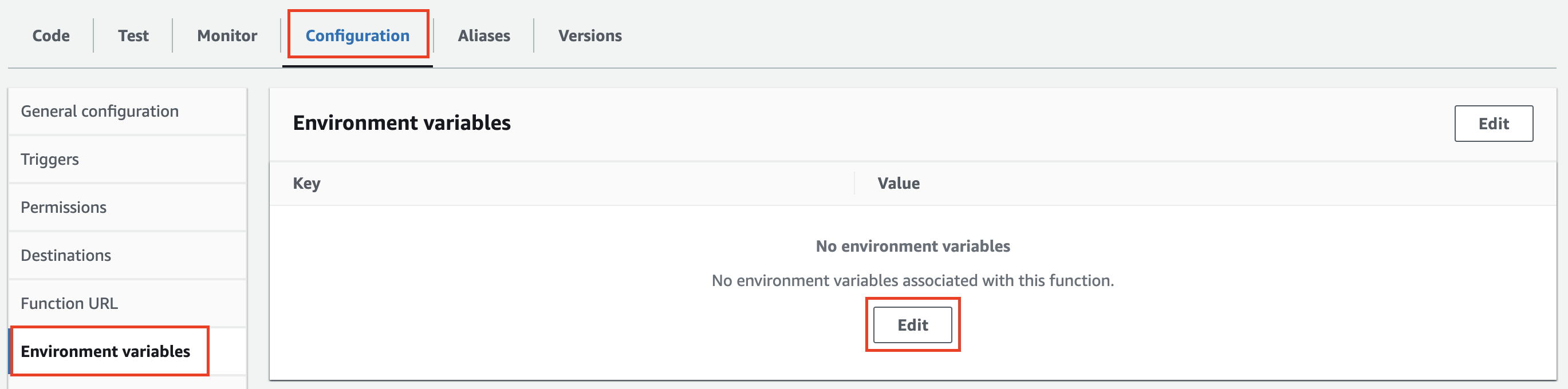

Go to the configuration section of the lambda console editor. Select Environment variables then select Edit.

AWS Lambda function console

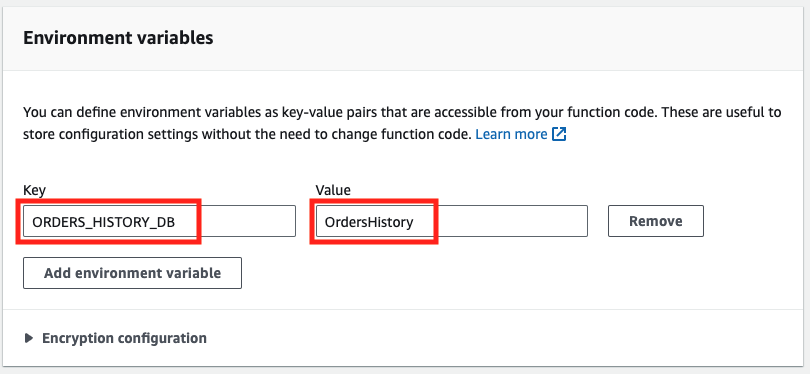

Add a new environment variable called ORDERS_HISTORY_DB and set its value to OrdersHistory.

AWS Lambda function console

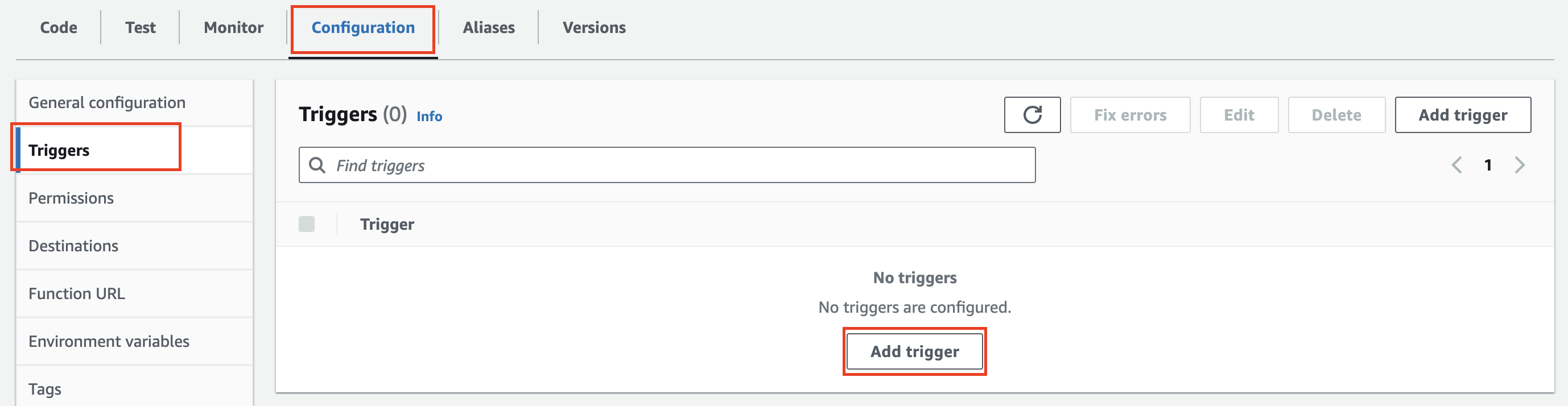

Select Triggers then select Add trigger.

AWS Lambda function console

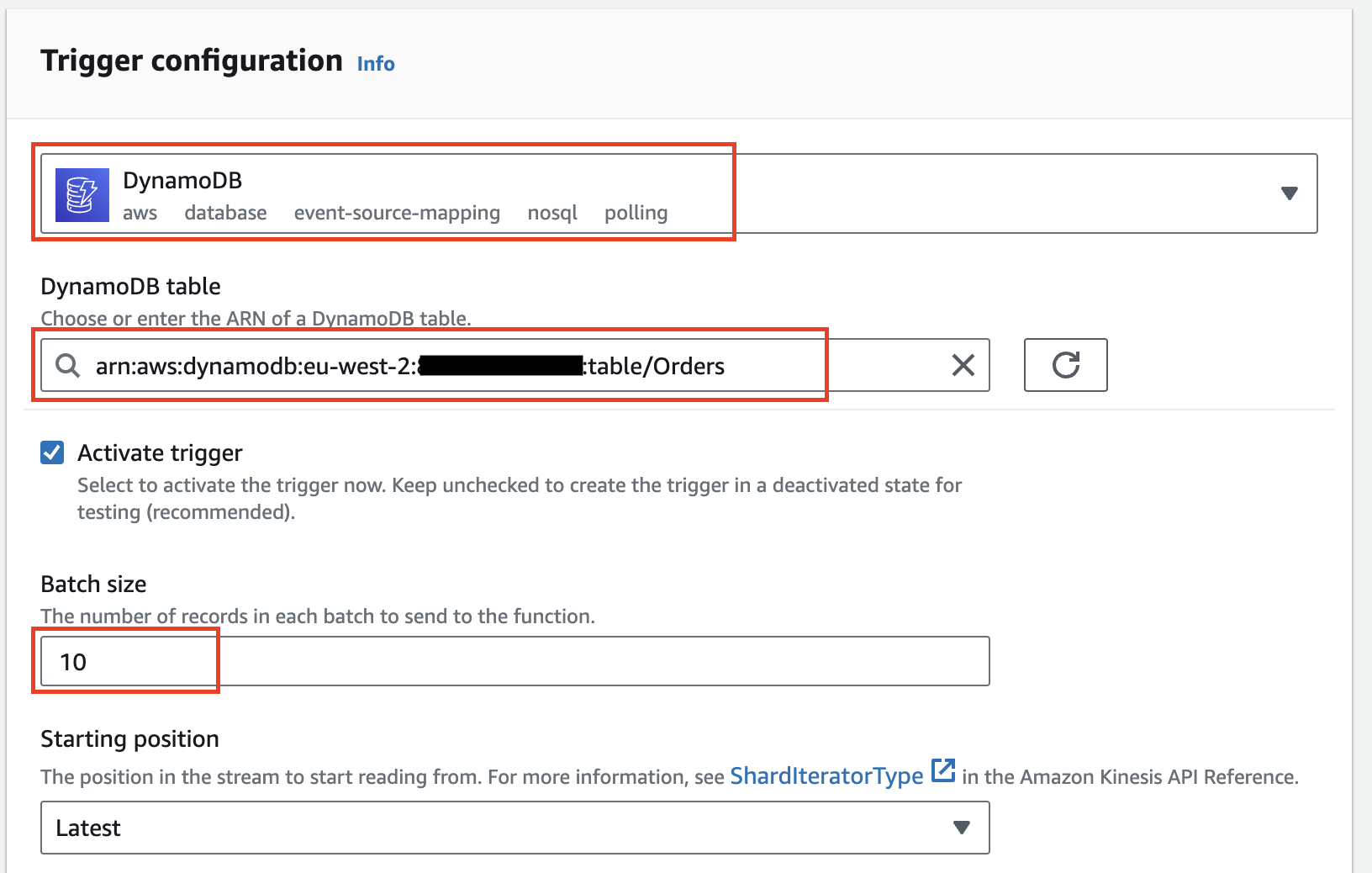

Select DynamoDB as the trigger source.
Select the Orders DynamoDB table.
Set the Batch size to 10 and leave all other values unchanged.

AWS Lambda function console

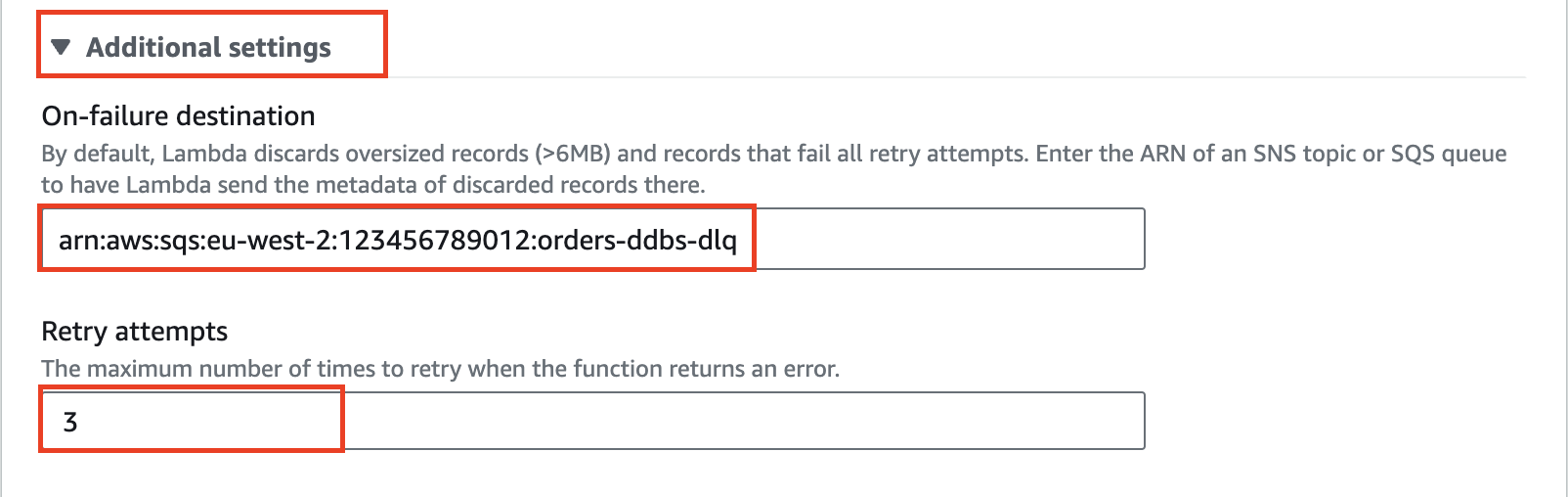

Click Additional settings to expand the section.
Provide the ARN of the orders-ddbs-dlq SQS queue you created earlier.

arn:aws:sqs:{aws-region}:{aws-account-id}:orders-ddbs-dlq

Set the Retry attempts to 3.

AWS Lambda function console

Select Add.
