Load DynamoDB Table
In this exercise, we will set up Database Migration Service (DMS) jobs to migrate data from source MySQL database (relational view, tables) to Amazon DynamoDB.
Verify DMS creation

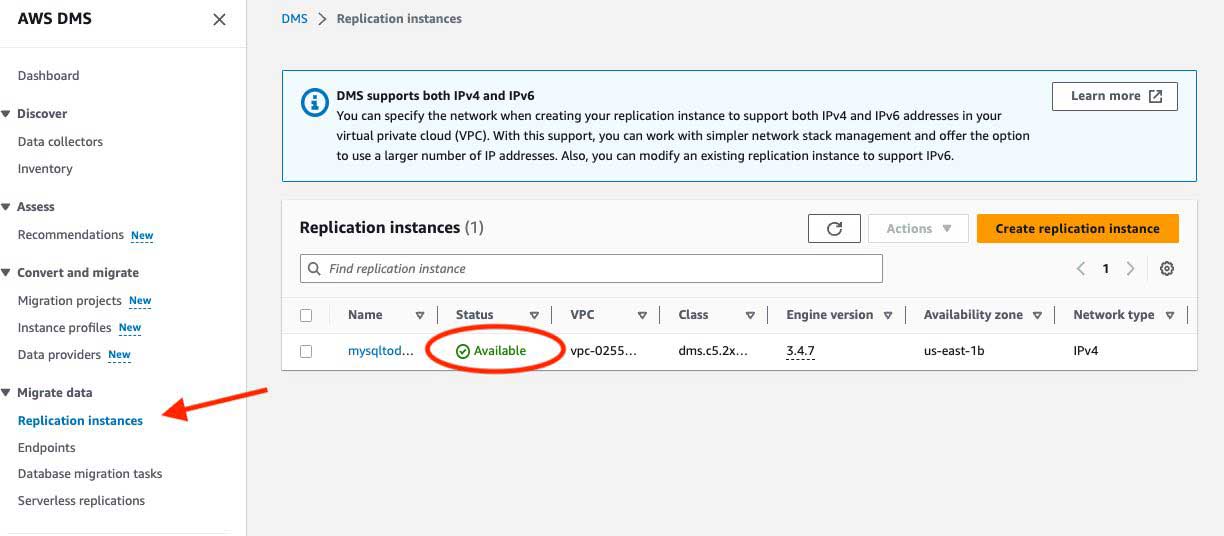

- Go to DMS Console and click on Replication Instances. You can able to see a replication instance with Class dms.c5.2xlarge in Available Status.
Make sure the DMS instance is Available before you continue. If it is not Available, return to the CloudFormation console to review and troubleshoot the CloudFormation stack.
Create source and target endpoints
-

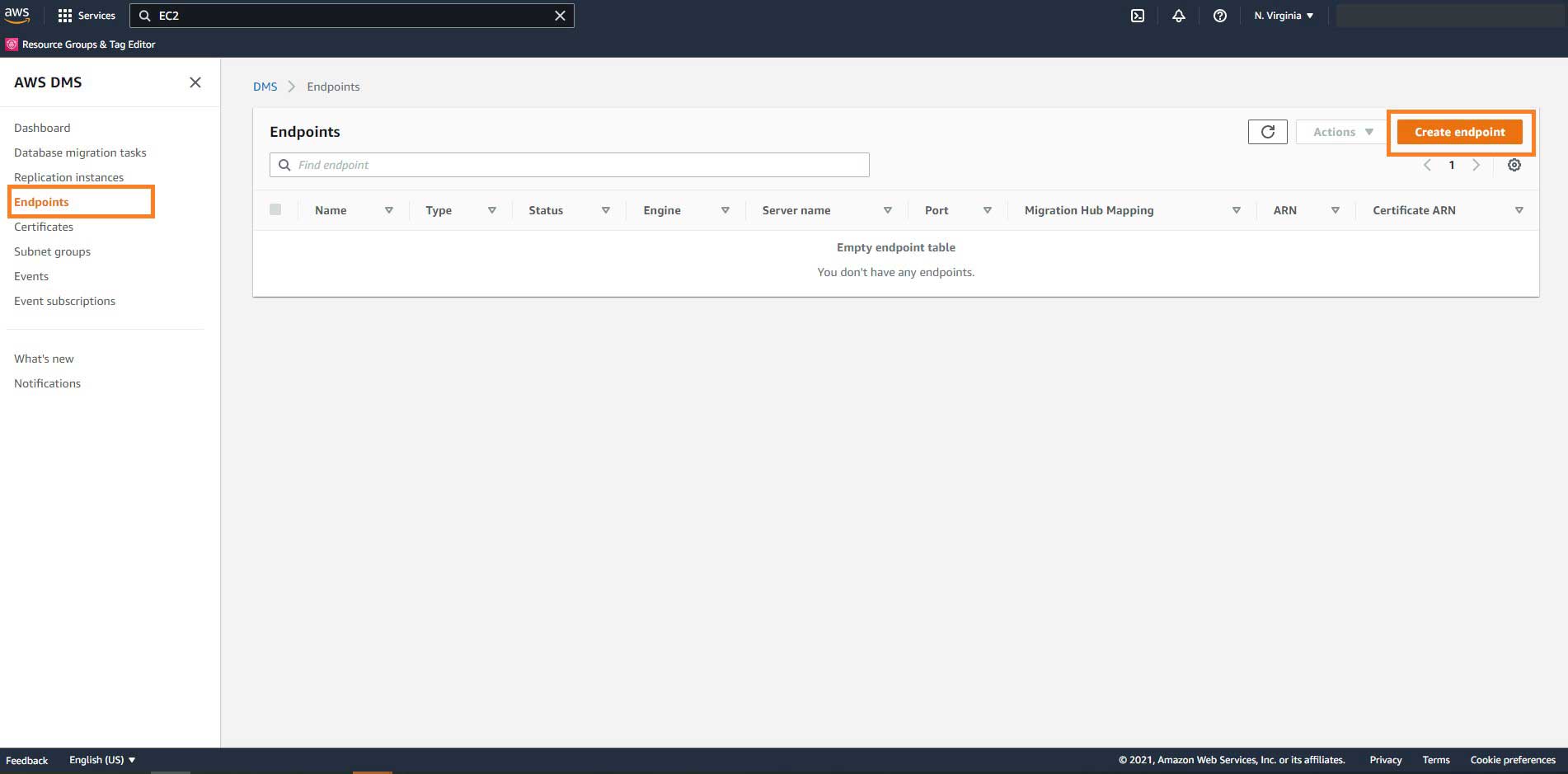

Click on Endpoints and Create endpoint button
-

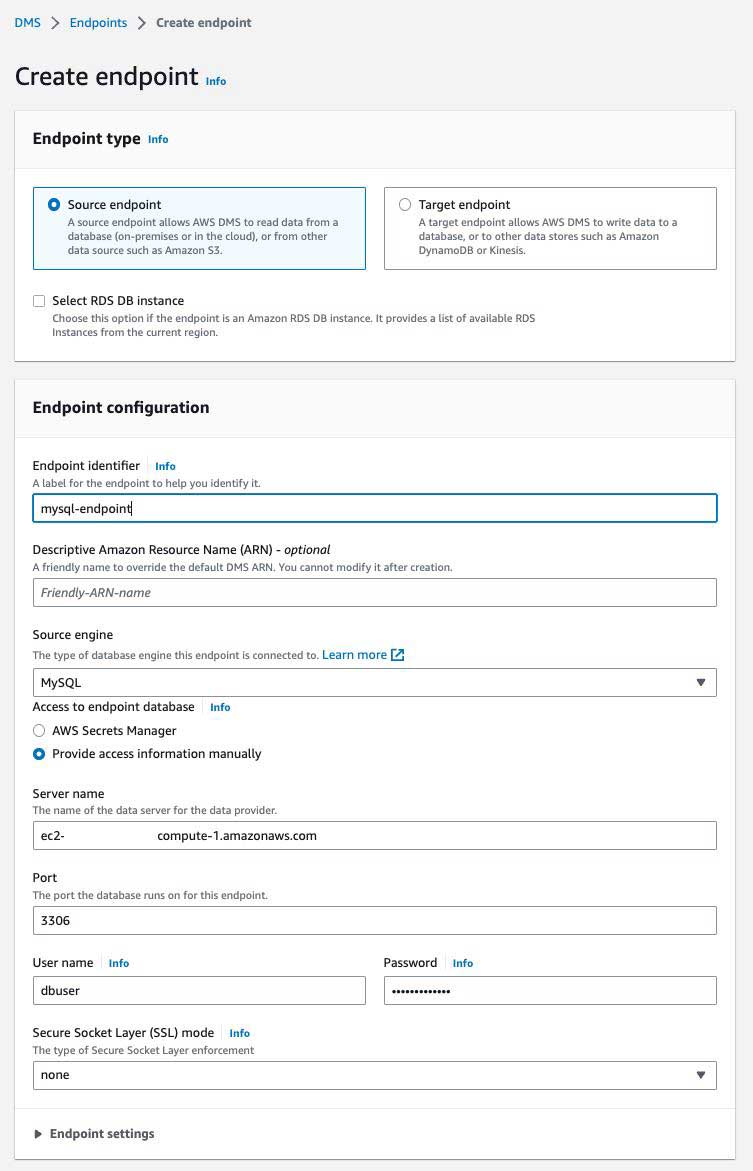

Create the source endpoint. Use the following parameters to configure the endpoint:
Parameter Value Endpoint type Source endpoint Endpoint identifier mysql-endpoint Source engine MySQL Access to endpoint database Select the “Provide access information manually” radio button Server name From the EC2 dashboard , select MySQL-Instance and copy Public IPv4 DNS Port 3306 SSL mode none User name Value of DbMasterUsername added as parameter during Configure MySQL Environment Password Value of DbMasterPassword added as parameter during Configure MySQL Environment

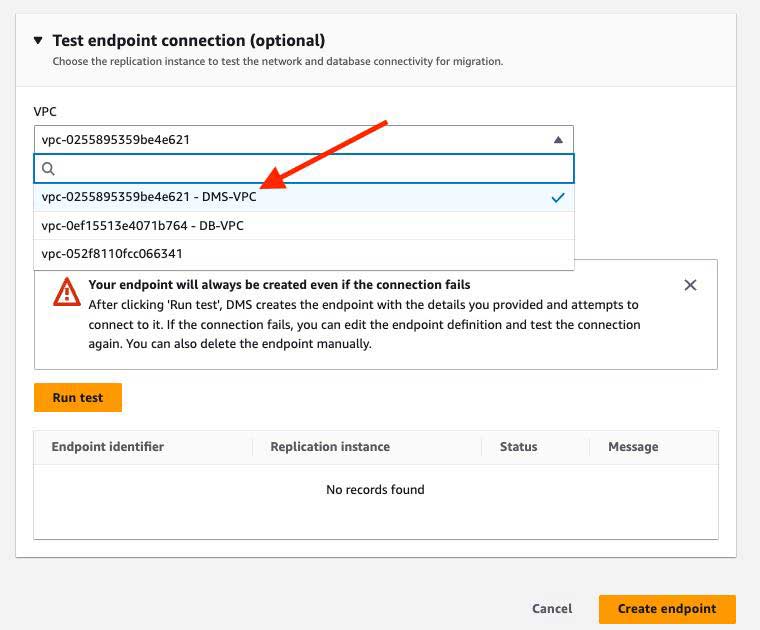

Open Test endpoint connection (optional) section, then in the VPC drop-down select DMS-VPC and click the Run test button to verify that your endpoint configuration is valid. The test will run for a minute and you should see a successful message in the Status column. Click on the Create endpoint button to create the endpoint. If you see a connection error, re-type the username and password to ensure no mistakes were made. Further, ensure you provided the IPv4 DNS name ending in amazonaws.com in the field Server name.
-

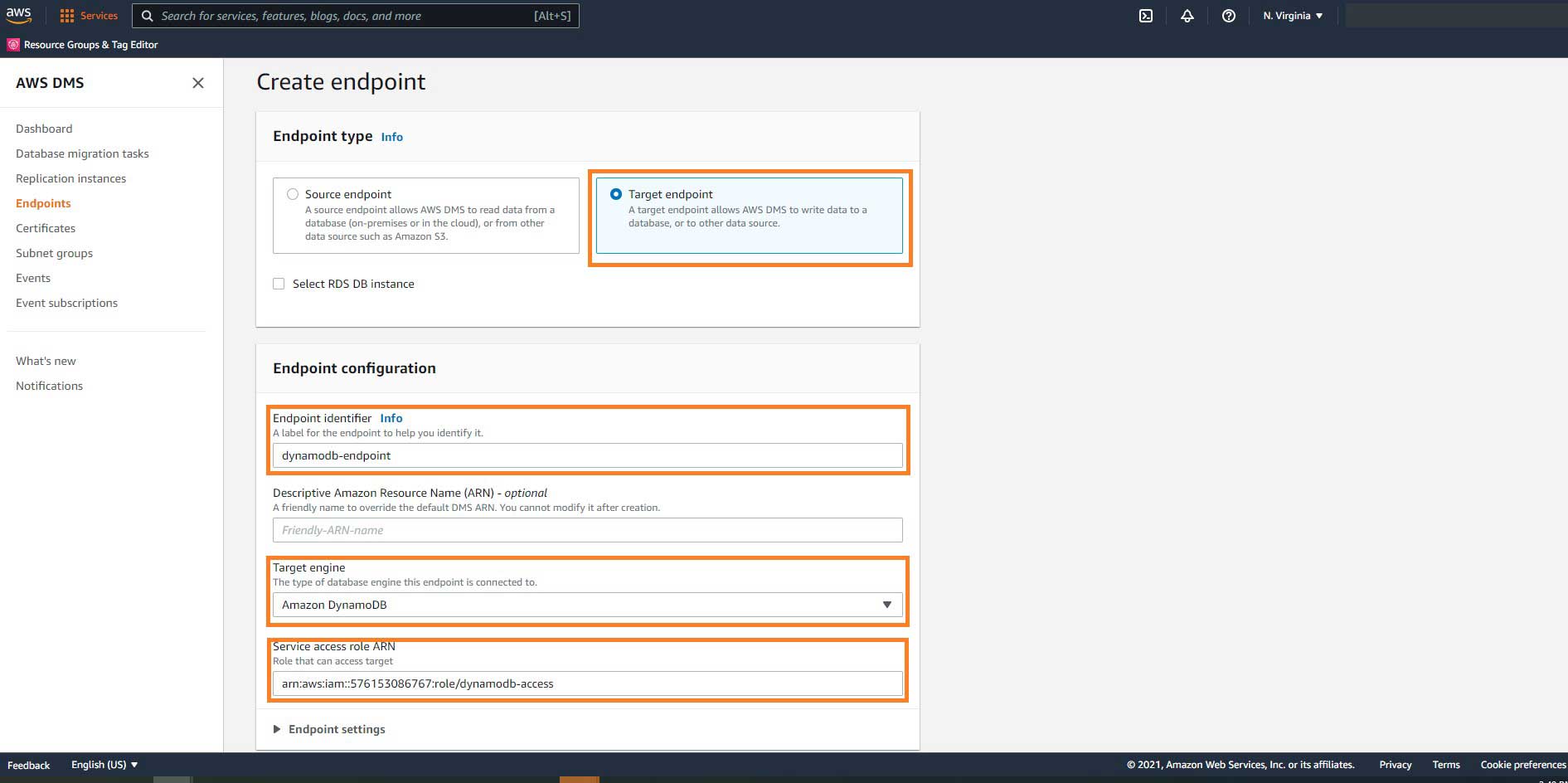

Create the target endpoint. Repeat all steps to create the target endpoint with the following parameter values:
Parameter Value Endpoint type Target endpoint Endpoint identifier dynamodb-endpoint Target engine Amazon DynamoDB Service access role ARN CloudFormation template has created new role with full access to Amazon DynamoDB. Copy Role ARN from dynamodb-access role
Open Test endpoint connection (optional) section, then in the VPC drop-down select DMS-VPC and click the Run test button to verify that your endpoint configuration is valid. The test will run for a minute and you should see a successful message in the Status column. Click on the Create endpoint button to create the endpoint.
Configure and Run a Replication Task
Still in the AWS DMS console, go to Database migration tasks and click the Create Task button. We will create 3 replication jobs to migrate denormalized view, ratings (title_ratings) and regions/languages (title_akas) information.

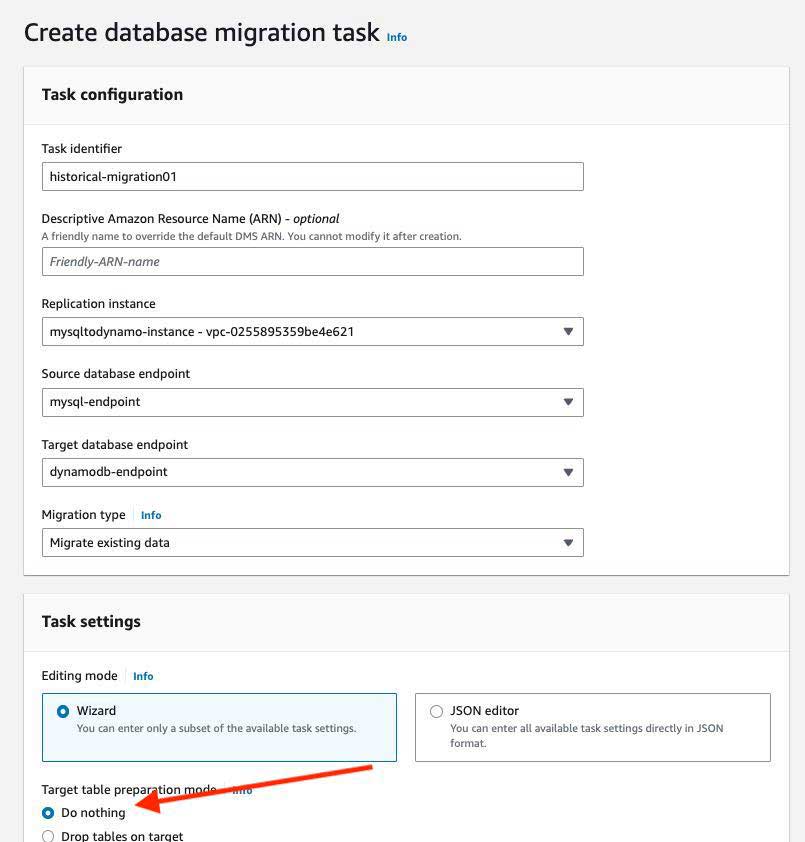

- Task1: Enter the following parameter values in the Create database migration task screen:

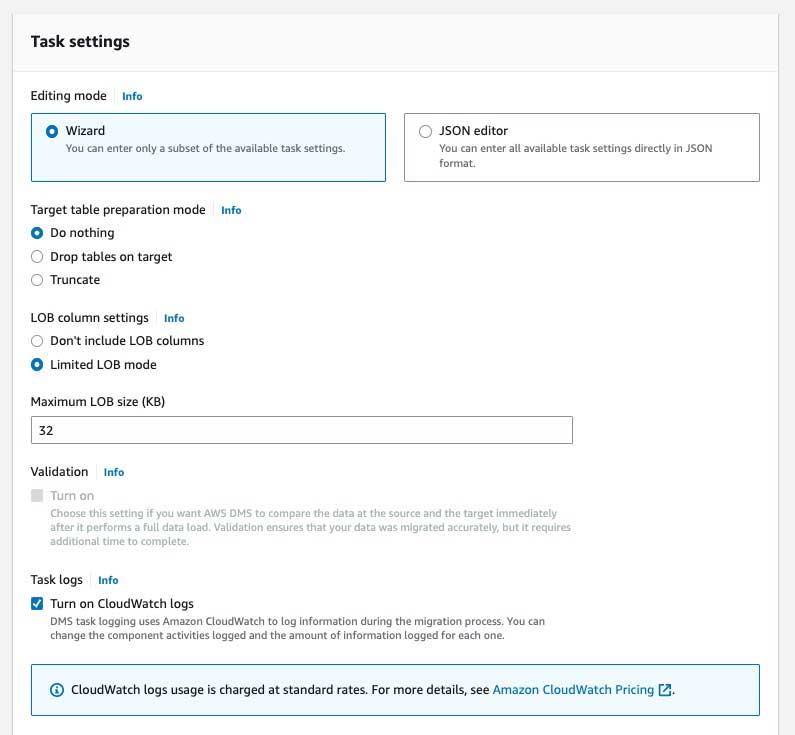

Parameter Value Task identified historical-migration01 Replication instance mysqltodynamodb-instance-* Source database endpoint mysql-endpoint Target database endpoint dynamodb-endpoint Migration type Migrate existing data Task settings: Editing mode Wizard Task settings: Target table preparation mode Do nothing Task settings: Turn on CloudWatch logs Checked Table mappings: Editing mode Select JSON editor option and follow the instructions after below screenshots

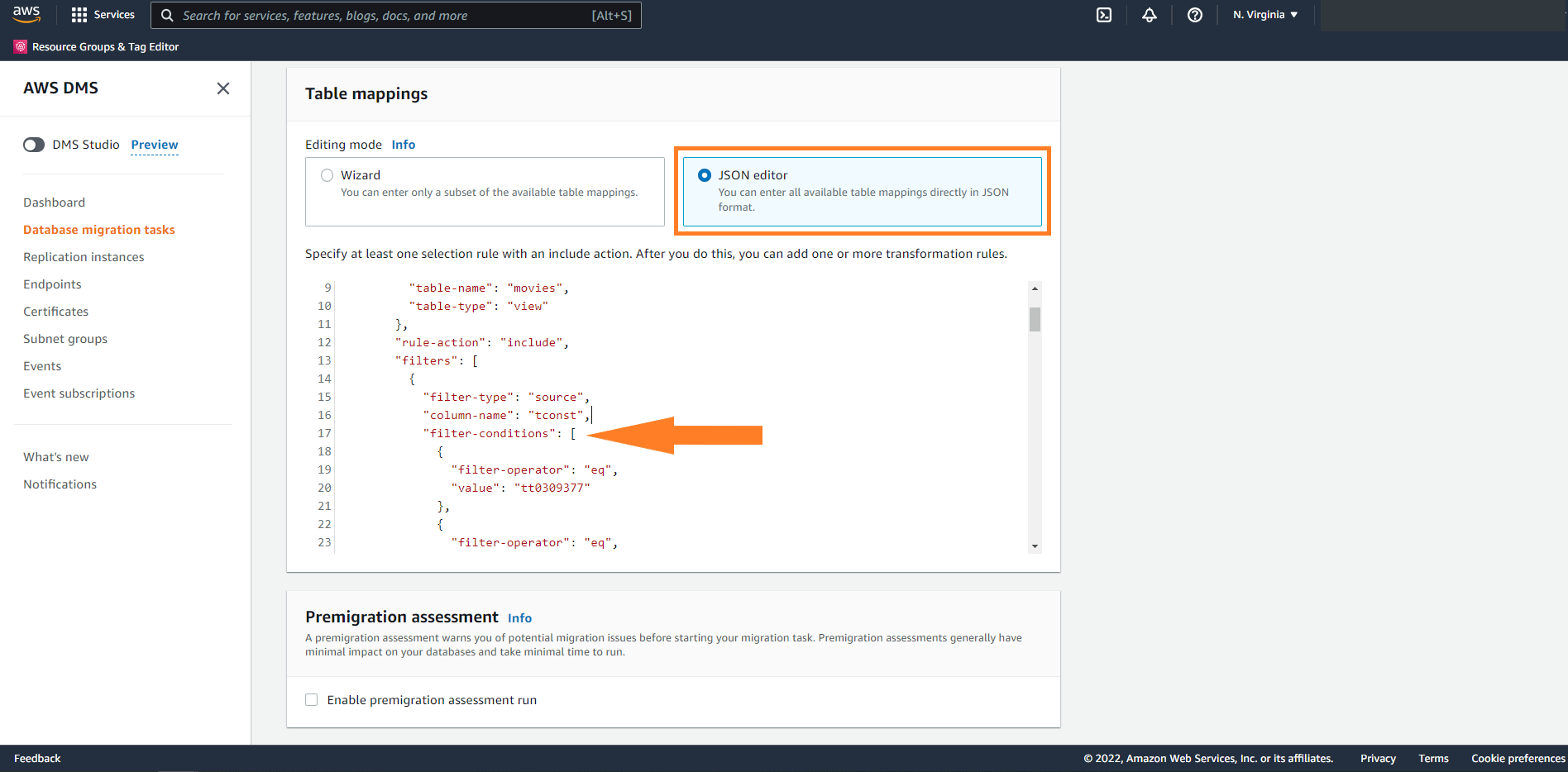

Start with the JSON editor section open in your browser. In this section we will create Table mappings JSON document to replace what you see in the JSON editor. This document includes source to target mapping including any transformation on the records that will be performed during migration. To reduce the loading time during Immersion Day, we have narrowed down the migration list to selective movies. Below JSON document has list of 28 movies worked by Clint Eastwood. The remaining exercise will just focus on these movies. However, feel free to load remaining data in case you like to further explore. Some statistics around full dataset is give at the bottom of this chapter.
Copy list of selective movies by Clint Eastwood.
{
"filter-operator": "eq",
"value": "tt0309377"
},
{
"filter-operator": "eq",
"value": "tt12260846"
},
{
"filter-operator": "eq",
"value": "tt1212419"
},
{
"filter-operator": "eq",
"value": "tt1205489"
},
{
"filter-operator": "eq",
"value": "tt1057500"
},
{
"filter-operator": "eq",
"value": "tt0949815"
},
{
"filter-operator": "eq",
"value": "tt0824747"
},
{
"filter-operator": "eq",
"value": "tt0772168"
},
{
"filter-operator": "eq",
"value": "tt0498380"
},
{
"filter-operator": "eq",
"value": "tt0418689"
},
{
"filter-operator": "eq",
"value": "tt0405159"
},
{
"filter-operator": "eq",
"value": "tt0327056"
},
{
"filter-operator": "eq",
"value": "tt2310814"
},
{
"filter-operator": "eq",
"value": "tt2179136"
},
{
"filter-operator": "eq",
"value": "tt2083383"
},
{
"filter-operator": "eq",
"value": "tt1924245"
},
{
"filter-operator": "eq",
"value": "tt1912421"
},
{
"filter-operator": "eq",
"value": "tt1742044"
},
{
"filter-operator": "eq",
"value": "tt1616195"
},
{
"filter-operator": "eq",
"value": "tt6997426"
},
{
"filter-operator": "eq",
"value": "tt6802308"
},
{
"filter-operator": "eq",
"value": "tt3513548"
},
{
"filter-operator": "eq",
"value": "tt3263904"
},
{
"filter-operator": "eq",
"value": "tt3031654"
},
{
"filter-operator": "eq",
"value": "tt8884452"
}
Below JSON document will migrate denormalized view from imdb MySQL database (Task identified: historical-migration01). Replace the string “REPLACE THIS STRING BY MOVIES LIST” with list of movies copied earlier (Checkout following screenshot for any confusion). Then paste the resulting JSON code in to the JSON editor, replacing the existing code.
{
"rules": [
{
"rule-type": "selection",
"rule-id": "1",
"rule-name": "1",
"object-locator": {
"schema-name": "imdb",
"table-name": "movies",
"table-type": "view"
},
"rule-action": "include",
"filters": [
{
"filter-type": "source",
"column-name": "tconst",
"filter-conditions": ["REPLACE THIS STRING BY MOVIES LIST"]
}
]
},
{
"rule-type": "object-mapping",
"rule-id": "2",
"rule-name": "2",
"rule-action": "map-record-to-record",
"object-locator": {
"schema-name": "imdb",
"table-name": "movies",
"table-type": "view"
},
"target-table-name": "movies",
"mapping-parameters": {
"partition-key-name": "mpkey",
"sort-key-name": "mskey",
"exclude-columns": [],
"attribute-mappings": [
{
"target-attribute-name": "mpkey",
"attribute-type": "scalar",
"attribute-sub-type": "string",
"value": "${tconst}"
},
{
"target-attribute-name": "mskey",
"attribute-type": "scalar",
"attribute-sub-type": "string",
"value": "DETL|${category}|${ordering}"
}
]
}
}
]
}
Go to the bottom and click on Create task. At this point the task will be created and will automatically start loading selected movies from source to target DynamoDB table. You can move forward and create two more tasks with similar steps (historical-migration02 and historical-migration03). Use the same settings as above except the Table Mappings JSON document. For historical-migration02 and historical-migration03 tasks use the JSON document mentioned below.
Below JSON document will migrate title_akas table from imdb MySQL database (Task identified: historical-migration02) Replace the string “REPLACE THIS STRING BY MOVIES LIST” with list of movies copied earlier.
{
"rules": [
{
"rule-type": "selection",
"rule-id": "1",
"rule-name": "1",
"object-locator": {
"schema-name": "imdb",
"table-name": "title_akas",
"table-type": "table"
},
"rule-action": "include",
"filters": [
{
"filter-type": "source",
"column-name": "titleId",
"filter-conditions": ["REPLACE THIS STRING BY MOVIES LIST"]
}
]
},
{
"rule-type": "object-mapping",
"rule-id": "2",
"rule-name": "2",
"rule-action": "map-record-to-record",
"object-locator": {
"schema-name": "imdb",
"table-name": "title_akas",
"table-type": "table"
},
"target-table-name": "movies",
"mapping-parameters": {
"partition-key-name": "mpkey",
"sort-key-name": "mskey",
"exclude-columns": [],
"attribute-mappings": [
{
"target-attribute-name": "mpkey",
"attribute-type": "scalar",
"attribute-sub-type": "string",
"value": "${titleId}"
},
{
"target-attribute-name": "mskey",
"attribute-type": "scalar",
"attribute-sub-type": "string",
"value": "REGN|${region}"
}
]
}
}
]
}
Below JSON document will migrate title_ratings table from imdb MySQL database (Task identified: historical-migration03) Replace the string “REPLACE THIS STRING BY MOVIES LIST” with list of movies copied earlier.
{
"rules": [
{
"rule-type": "selection",
"rule-id": "1",
"rule-name": "1",
"object-locator": {
"schema-name": "imdb",
"table-name": "title_ratings",
"table-type": "table"
},
"rule-action": "include",
"filters": [
{
"filter-type": "source",
"column-name": "tconst",
"filter-conditions": ["REPLACE THIS STRING BY MOVIES LIST"]
}
]
},
{
"rule-type": "object-mapping",
"rule-id": "2",
"rule-name": "2",
"rule-action": "map-record-to-record",
"object-locator": {
"schema-name": "imdb",
"table-name": "title_ratings",
"table-type": "table"
},
"target-table-name": "movies",
"mapping-parameters": {
"partition-key-name": "mpkey",
"sort-key-name": "mskey",
"exclude-columns": [],
"attribute-mappings": [
{
"target-attribute-name": "mpkey",
"attribute-type": "scalar",
"attribute-sub-type": "string",
"value": "${tconst}"
},
{
"target-attribute-name": "mskey",
"attribute-type": "scalar",
"attribute-sub-type": "string",
"value": "RTNG"
}
]
}
}
]
}
Solutions
If you are having trouble with making the JSON documents for the tasks, expand this section to get the solutions!
- First Task - historical-migration01
- Second Task - historical-migration02
- Third Task - historical-migration03
Monitor and the restart/resume the tasks
The replication task for historical migration will start moving data from MySQL imdb.movies view, title_akas and title_ratings to DynamoDB table will start in a few minutes. If you are loading selective records based on the list above, it may take 5-10 minutes to complete all three tasks.
If you were to run this exercise again but do a full load, the load times would be as follows:
- historical-migration01 task will migrate 800K+ records and normally takes 2-3 Hrs.
- historical-migration02 task will migrate 747K+ records and normally takes 2-3 Hrs.
- historical-migration03 task will migrate 79K+ records and normally takes 10-15 Minutes.

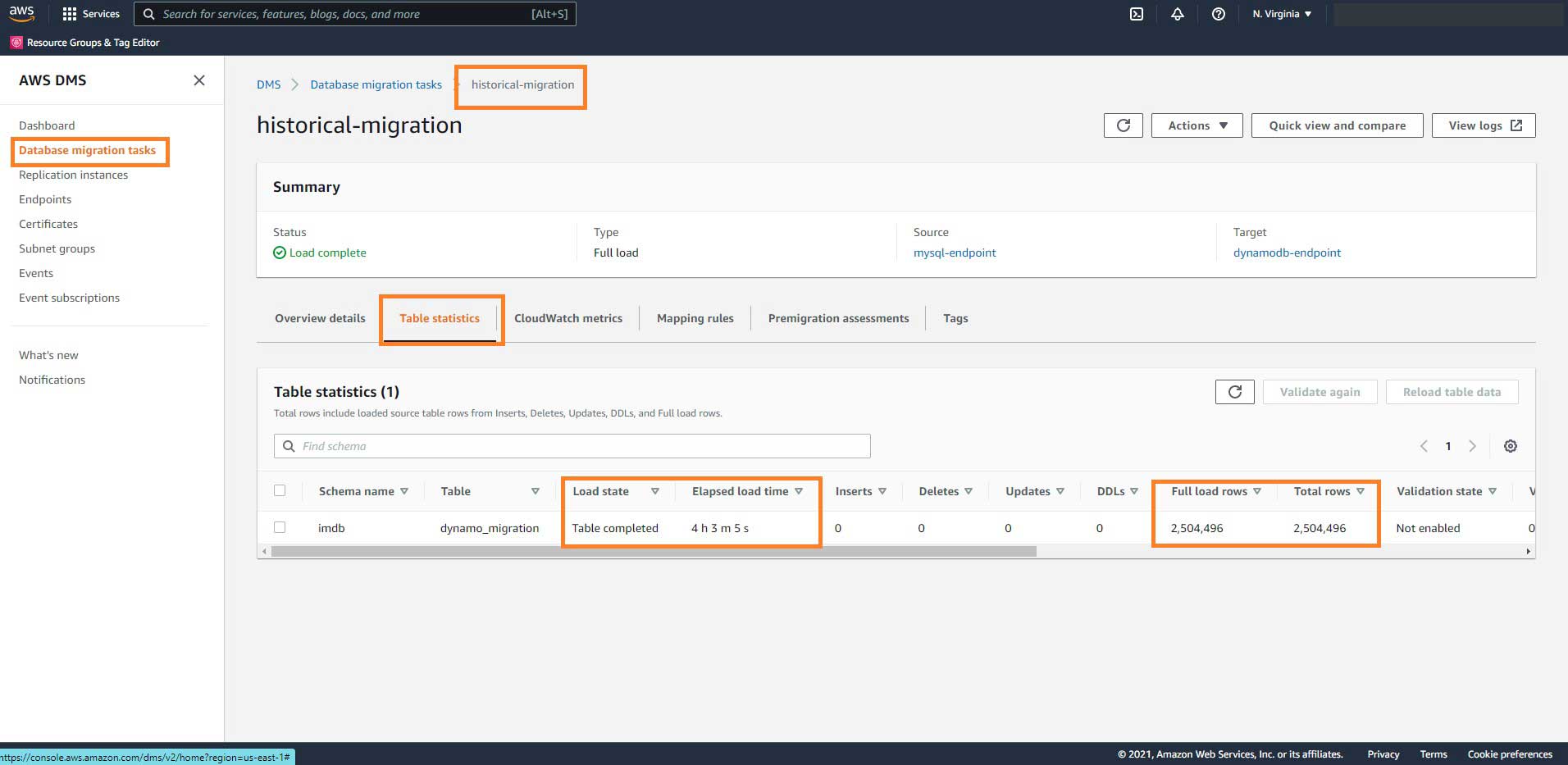

You can track the status of data loading under the Table statistics of the migration task. Once loading is in progress, feel free to move to the next section of the exercise.
Make sure all tasks are running or complete before you continue. If a task says Ready, check its box and choose “Restart/Resume” under the Actions button to start the task.
