Step 1 - Create the replica table

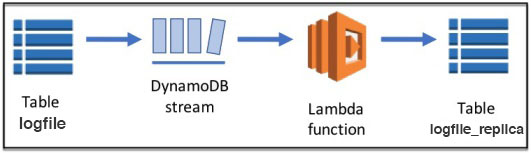

DynamoDB stream with Lambda

Let’s create a table named logfile_replica to hold the replicated rows. This create-table command is based on the command to create the logfile table. As a result, it creates a table that can hold the same items as its upstream table.

aws dynamodb create-table --table-name logfile_replica \
--attribute-definitions AttributeName=PK,AttributeType=S AttributeName=GSI_1_PK,AttributeType=S \
--key-schema AttributeName=PK,KeyType=HASH --provisioned-throughput ReadCapacityUnits=10,WriteCapacityUnits=5 \
--tags Key=workshop-design-patterns,Value=targeted-for-cleanup \
--global-secondary-indexes "IndexName=GSI_1,KeySchema=[{AttributeName=GSI_1_PK,KeyType=HASH}],\
Projection={ProjectionType=INCLUDE,NonKeyAttributes=['bytessent', 'requestid', 'host']},\
ProvisionedThroughput={ReadCapacityUnits=10,WriteCapacityUnits=5}"

This command creates a new table and an associated global secondary index with the following definition.

Table: logfile_replica

  • Key schema: HASH (partition key)
  • Table read capacity units (RCUs) = 10
  • Table write capacity units (WCUs) = 5
  • • Global secondary index:
    • GSI_1 (10 RCUs, 5 WCUs) - Allows for querying by host IP address.
Attribute Name (Type) Special Attribute? Attribute Use Case Sample Attribute Value
PK (STRING) Partition key Holds the request id request#104009
GSI_1_PK (STRING) GSI 1 partition key Host host#66.249.67.3

Run the following command to wait until the table becomes active.

aws dynamodb wait table-exists --table-name logfile_replica
